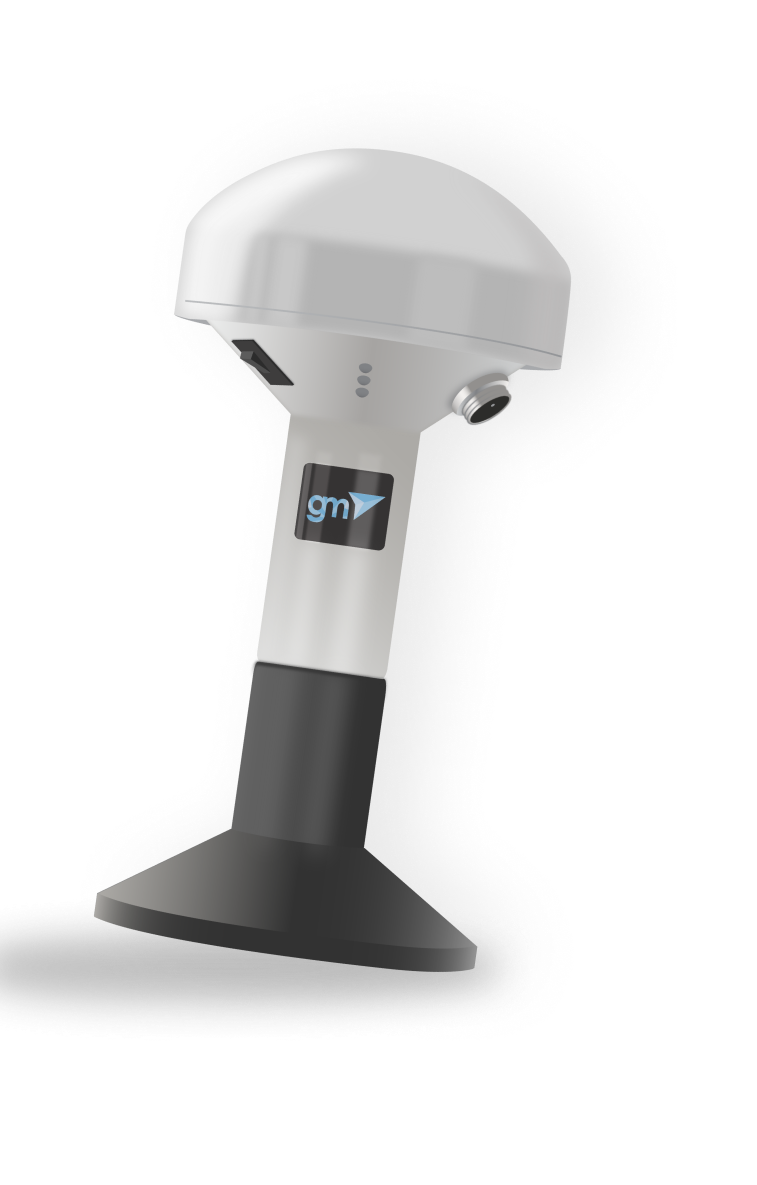

GNSS receiver GM Spike

GNSS receiver GM Spike for precision farming

GNSS receiver GM Spike

GNSS receiver SPIKE with Bluetooth was designed to improve accuracy of positioning agricultural applications using on smartphones and tablets

GNSS receiver GM Spike for precision farming
Improves the quality of GNSS
signal reception up to 25%
GNSS receiver GM Spike for precision farming
The number of visible
satellites increases up to 20%
BUY NOW
Learn more
GNSS receiver GM Spike for precision farming

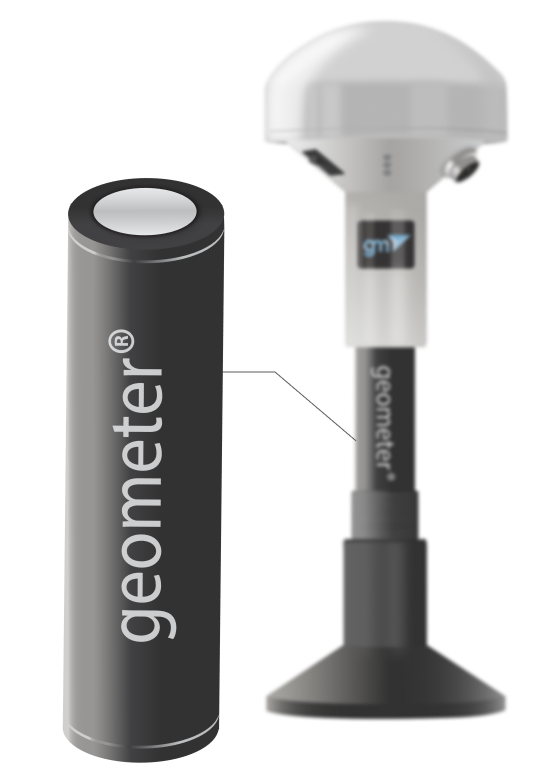

REPLACEABLE BATTERY

GNSS receiver SPIKE has a built-in powerful Li-Ion battery, thanks to which you can work autonomously
up to 24 hours without recharging.

If necessary, you can connect the supplied cable to charge the battery and operate from an external power source.

GNSS receiver SPIKE has a built-in powerful Li-Ion battery, thanks to which you can work autonomously
up to 24 hours without recharging.

If necessary, you can connect the supplied cable to charge the battery and operate from an external power source.

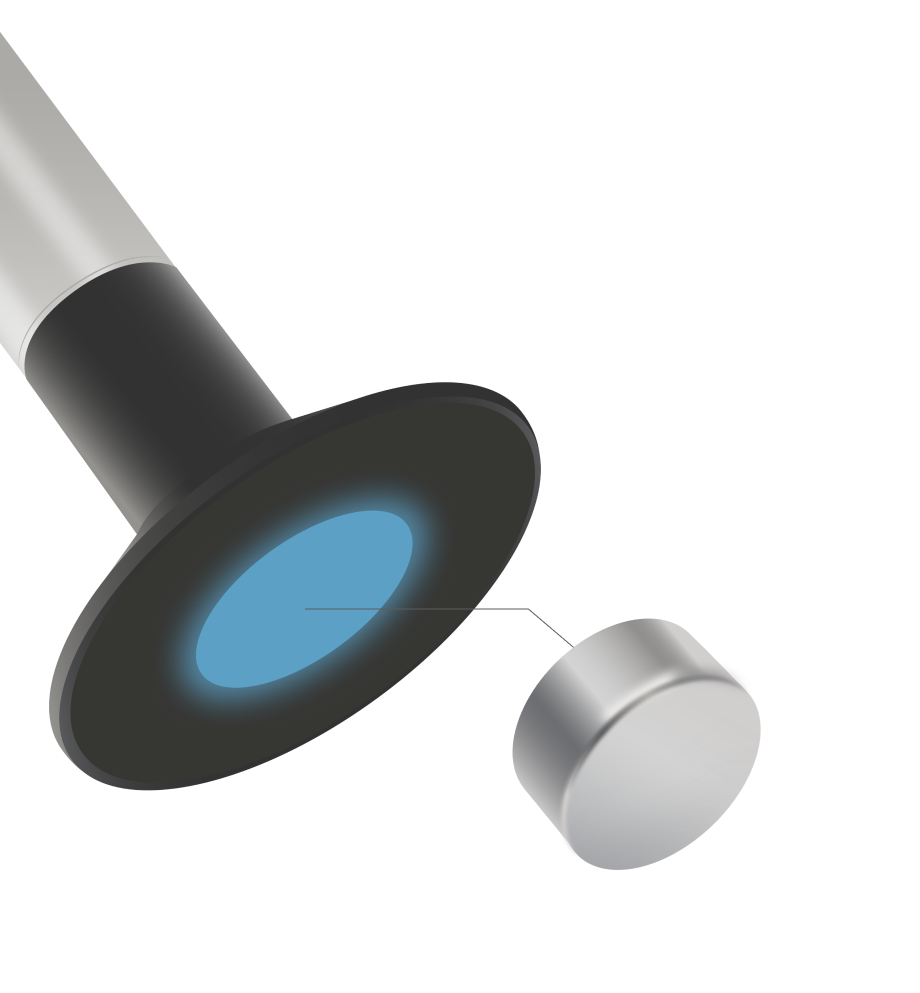

SECURE MAGNETIC MOUNT

GNSS receiver GM Spike for precision farming

SECURE MAGNETIC MOUNT

The GNSS receiver has a built-in neodymium magnet, which allows the receiver to be securely mounted to any metal surface.

The Spike GNSS receiver can be used both on a vehicle and on a pole using the holder included in the accessory kit (option).

The GNSS receiver has a built-in neodymium magnet, which allows the receiver to be securely mounted to any metal surface.

The Spike GNSS receiver can be used both on a vehicle and on a pole using the holder included in the accessory kit (option).

Adhesion force - 35 kg (77 lbs).

PARAMETERS OF THE RECEIVER

GNSS receiver GM Spike for precision farming
Choose a suitable kit of GM Spike GNSS receiver with mobile application for Android at the best price!
BUY NOW
GNSS receiver GM Spike for precision farming
GPS, GLONASS, GALILEO, BeiDou
GNSS receiver GM Spike for precision farming
Bluetooth connection
GNSS receiver GM Spike for precision farming
ON/OFF receiver
GNSS receiver GM Spike for precision farming
Connecting the charging cable
GNSS receiver GM Spike for precision farming
Strong neodymium magnet
GNSS receiver GM Spike for precision farming
Built-in battery. Works up to 24 hours on one charge

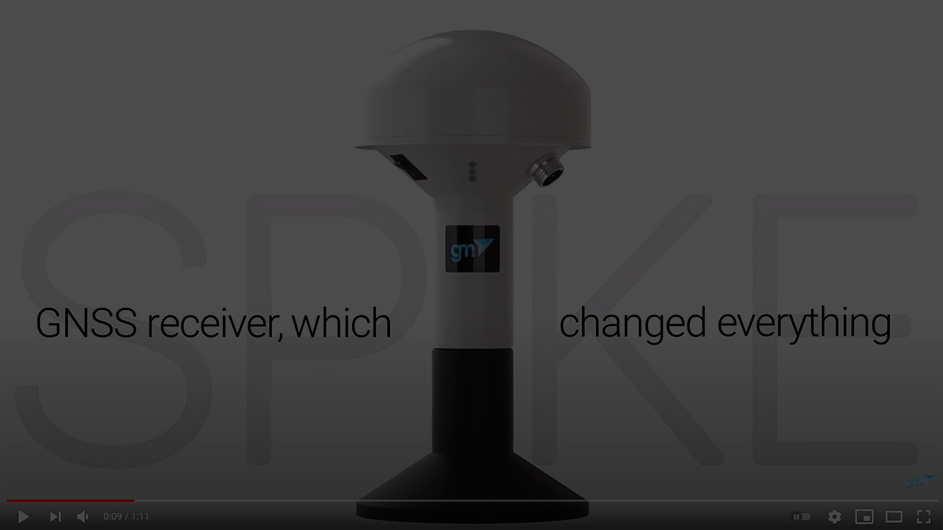

VIDEO REVIEW

GNSS receiver GM Spike for precision farming
×

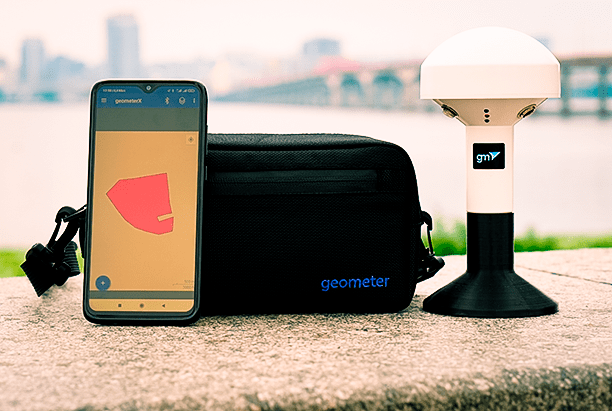

SPECIFICATION

Weight
Height
Diameter
Bluetooth
GPS
Battery
Enclosure
Baud rate
Mount
Channels
Working temperature
Cold start
Warm start
Hot start
0,45 kg
180 mm
110 mm
yes, 4.2 version
single-frequency, L1
Li-ion, up to 24 hours
IP54
1 Hz, 2 Hz, 4 Hz, 5 Hz, 10 Hz
neodymium magnet
72 channels
from -40 °C to +80 °C
29 s
5 s
1 s
GNSS receiver GM Spike for precision farming
GNSS receiver GM Spike for precision farming
GNSS receiver GM Spike for precision farming
GNSS receiver GM Spike for precision farming

SOFTWARE

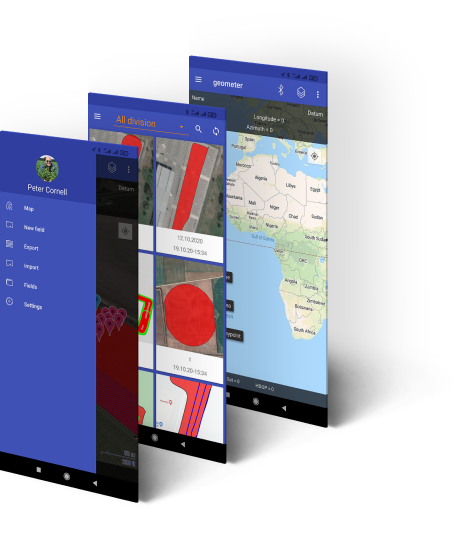

geometer

GNSS receiver GM Spike for precision farming
The geometer mobile application for measuring field area on your smartphone or tablet with GM Spike receiver is the optimal kit for accurate measurement of area, distances and points.

You will be able to perform independently necessary work with the areas, namely: professional measurement of the area of fields of any shape, measurement of distances, stakeout, land surveying, cutting out non-productive areas, create electronic maps and many other operations with the areas.

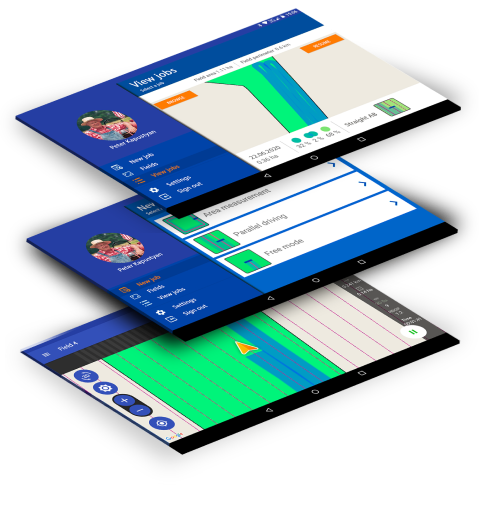

geotrack

GNSS receiver GM Spike for precision farming
The geotrack evo mobile app with GM Spike receiver on your tablet is a budget solution that allows you to create your own parallel driving system for precise control of the wide-reach implement during field operations such as pre-seed preparation, seeding, spraying, fertilization and protection plants.

This kit is ready to install on your mobile device (tablet or smartphone) and has a basic level of accuracy external GPS receiver.

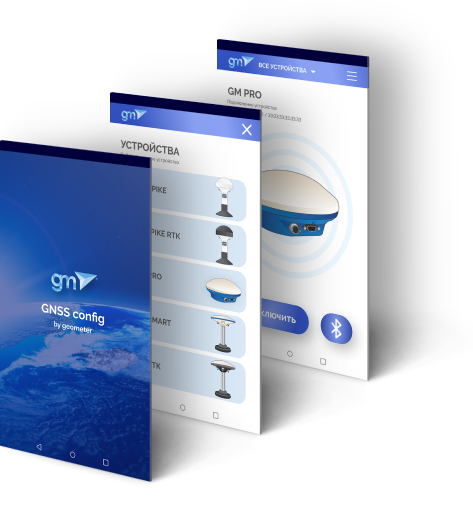

GNSS Config

GNSS receiver GM Spike for precision farming
The GNSS Config mobile app comes in handy for professional users. Allows you to change the settings of any receivers manufactured by GeoMeter company.

Using the GNSS Config application, you can independently select a receiver from the list, configure the output of NMEA strings, change the receiver operating mode, adjust the refresh rate of the received data and check the result in the built-in terminal.

SELECT PRODUCT

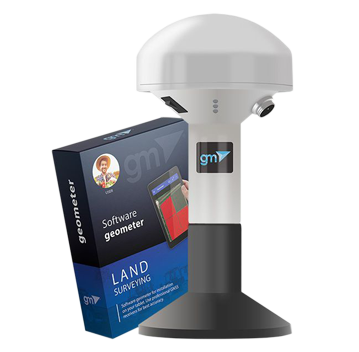

GM Spike with geometer app
GNSS receiver GM Spike for precision farming
GNSS receiver with built-in Bluetooth and geometer app for accurate area measurement and work with coordinates.

Equipment:
Receiver SPIKE
Geometer mobile app for Android
GNSS Config mobile app
Charging cable, 3 m
Warranty card
Price: 300 USD

BUY NOW

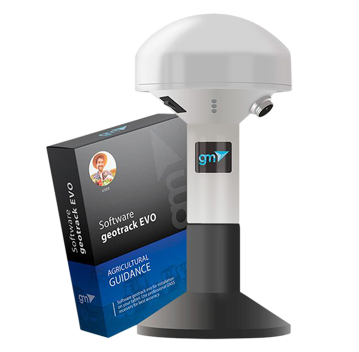

GM Spike with geotrack app
GNSS receiver GM Spike for precision farming
GNSS receiver with built-in Bluetooth module and geotrack application for parallel driving and control of agricultural operations.
Equipment:
Receiver SPIKE
Geotrack mobile app for Android
GNSS Config mobile app
Charging cable, 3 m
Warranty card
Price: 300 USD


BUY NOW

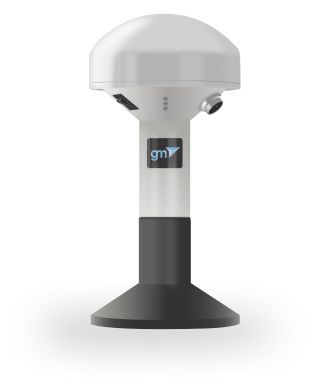

GM Spike
GNSS receiver GM Spike for precision farming
GNSS receiver with built-in Bluetooth module to improve positioning accuracy on smartphones and tablets. No geometer or geotrack apps.
Equipment:
Receiver SPIKE
GNSS Config mobile app
Charging cable, 3 m
Warranty card

Price: 280 USD


BUY NOW
×
